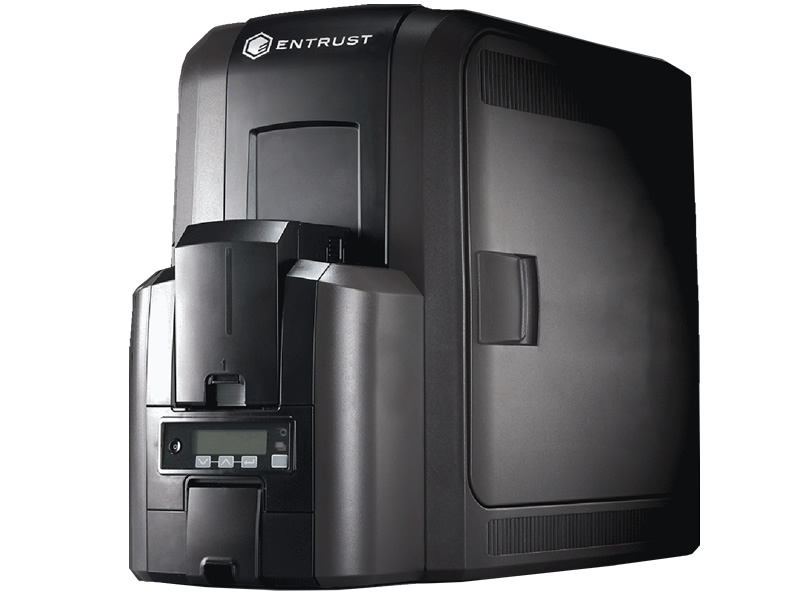

Artista CR805 Retransfer ID Card Printer

Entrust Artista CR805 Retransfer Card Printer (formerly Entrust Datacard™ CR805™ Retransfer Card Printer)

Print Technology

• Retransfer pigment ink

Print Capabilities

• Single- or dual-sided, over-the-edge printing

Print Resolution

• 600 dots per inch (dpi)

Print Speed

• Full color printing
  • Single-sided (CMYKP) – up to 110 cards per hour (cph)
  • Double-sided (CMYKP-KP) – up to 65 cards per hour (cph)

Color Modes

• True Color (ICC) – prints color as close as possible to image as defined in the card design
• Legacy SR/CR – prints color as close as possible to the SR200, SR300, and SR300e card printers

Card Capacity

• Input hopper – 125 cards
• Output hopper – 25 cards (optional 125 card)
• Card input size – 0.030 inches to 0.040 inches (0.76 mm to 1.01mm)

Operating Environment

• 60°F – 95°F (15°C – 35°C)

Physical Dimensions

• L 21.4 in. x W 10.1 in. x H 15.6 in.
• L 54.34 cm x W 25.53 cm x H 39.68 cm

Weight

• 28 lb. (12.7 kg); with options will vary

Connectivity

• USB and Ethernet

Warranties

• Printer: 36 month standard warranty
• Printhead: Limited lifetime warranty

Magnetic Stripe Encoding

• ISO/IAT Magnetic Stripe Encoding
• JIs Magnetic Stripe Encoding

SmartCard Encoding

Single wire – Contact ISO 7816 T=0, 1

• Contactless ISO 14443 A/B Protocols,
• Mifare Protocols & FeliCa (DES & AES)

Loosely Couple – Contact ISO 7816 T=0, 1

• Contactless ISO 14443 A/B Protocols, Mifare Protocols & FeliCa
• HID iCLASS, Read/write or read-only encoder
• PC Prox

Primeless Color Panel Ribbons and Retransfer Film

• CMYK: 1,000 images single-sided (500 dual-sided)
• CMYK-K: 1,000 images dual-sided
• Clear Retransfer Film: 1,000 images single-sided (500 dual-sided)

Color Ribbons with Primer Panel and Retransfer Film

Two options:

• CMYKP-KPi: 500 images dual-sided
• FCMYP-KPi: 750 images dual-sided
• Clear Retransfer Film:
  • 1,500 images single-sided (750 dual-sided)
  • 1,000 images single-sided (500 dual-sided)
