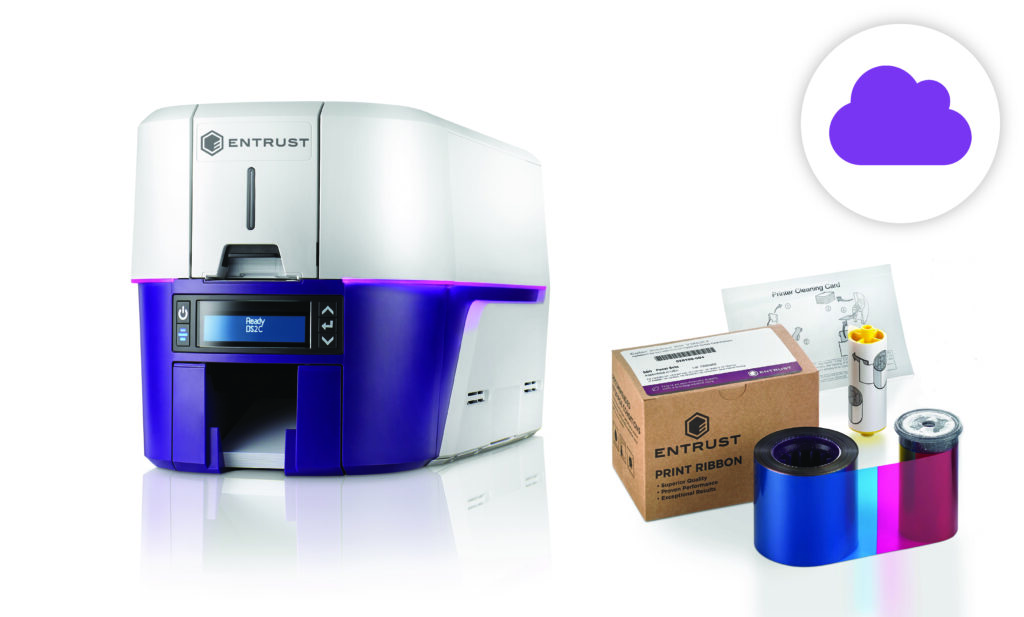

Sigma DS2C Cloud-Only Card Printer

The Next Generation Double-Sided Printer

Introducing a true cloud experience, combining the reliable Entrust (Datacard) Sigma DS2 powered by Instant ID as a Service. The Entrust (Datacard) Sigma DS2C Card Printer is only compatible with Instant ID as a Service software, allowing users to benefit from a consistent experience by using software that was designed for their printer.

Types of Cards:

  • Government-issued IDs & Cards
  • Employee ID Cards
  • Student, Teacher, Faculty, & Admin ID Cards
  • Membership Cards
  • Guest Cards
  • Food Safe Labeling
  • Passenger Cards
  • Visitor ID Cards
  • Event ID Cards
  • Access Control Cards

Industries:

  • Regional & Local Government
  • Enterprise
  • Education
  • Healthcare
  • Retail
  • Hospitality
  • Food Retail
  • Transportation

Request a Quote

We will provide you with a quotation in 24 hours.

Click Here

Out of Box Experience

Reduces the complexity and frustrations of unboxing specifically engineered to start the ultimate printing experience.

One Day Setup

Issue your first credential the same day as unpacking your printer. A self-service onboarding process facilitates quick product setup.

Printer Dashboard

See printer status, order supplies, check cleaning status, update firmware, or contact help, all on your mobile device.

Software Meets Supplies

An IIDaaS Ribbon being both software and supply means reordering an IIDaaS Ribbon replenishes both the supply and software.

Unmatched Security

Ensure your data is safe from intruders with encryption technology, TPM Module, and Secure Boot.

Purposeful Design

Designed to integrate into your physical environment with features such as variable light LED ring.

Standard Features and Supplies

Print Technology

  • Dye-sublimation / resin thermal transfer

Print Capabilities

  • Dual-sided

Print Resolution

  • 300 dots per inch (dpi) (300 X 600, 300 X 1200)

Monochrome printing

  • Up to 880 single-sided cards per hour

Print and Lamination Speed

  • Single-sided color ribbon – up to 225 cards per hour (cph)
  • Double-sided color ribbon – up to 140 cards per hour (cph)

Card Capacity

  • Input hopper – up to 125 cards
  • Output hopper – up to 25 cards (up to 100 optional)
  • Reject hopper – up to 10 cards

Card Sizes

  • Card input size:
  • Thickness – 0.010 inches to 0.040 inches
    • (0.25mm – 1.016mm)
  • Dimension – ID-1, CR-79, CR-80

Operating Environment

  • Temperature: 60°F to 95°F (15°C to 35°C)
  • Humidity: 20-80 % RH – non condensing

Physical Dimensions

  • L 17.4 in x W 8.9 in x H 9 in / 44.2 cm x 22.6 cm x 22.9 cm

Weight

  • 12.1 lbs (5.49 kg); with options will vary

Connectivity

  • Ethernet

Warranties

  • 48 Months

Web browser support for Instant ID as a Service

  • Chrome – Preferred
  • Edge/Internet Explorer
  • Safari

Operating system support for printer driver

  • Windows 11
  • Windows 10 (32- and 64-bit)
  • Windows Server 2019
  • Windows Server 2022

Optional Features and Supplies

Magnetic Stripe Encoding

  • ISO 7811 three-track support (high- and low- coercivity)
  • JIS Type II Single-track option

WiFi

  • Wi-Fi types: 802.11g/n
  • Authentication modes: None, WPA2 Personal
  • Dual-band 2.4GHz & 5GHz

Smart Card Encoding

  • Single Wire or Loosely coupled:
  • Contact smart card encoding: ISO 7816 T=0 (T=1),
  • Class A 5V (3V and 1.8V)
  • Contactless smart card encoding:
  • ISO 14443 – A (B), ISO 15693, MiFare Series, DESFire Series,
  • HID IClass Series, HID Prox (125 KHZ)

Color Ribbons

  • Supported IIDaaS Ribbons:
    • YMCKT (500)
    • YMCKT (250)
    • YMCKT-KT (350)
